Configure IPsec VPN in an Ubuntu VM using strongSwan

What is strongSwan?

strongSwan is an open-source package for IPsec VPN. You could use strongSwan for configuring VPN in Linux, UNIX, and BSD Operating Systems.

In this example, we will configure an IPsec VPN in an Ubuntu VM. However, same configuration can be applied for RedHat and other distos.

Please note that the IPsec VPN is setup between an Azure VM and Azure Virtual Network Gateway which are in different VNets and there is no connecitivity between VNets in any manner. So, before proceeding with rest of the Blog, please create Azure VMs and Virtual Network Gateway in different VNets with public IPs. You could perform this excerise in AWS as well by creating EC2 instances and Virtual Private Gateway in different VPCs.

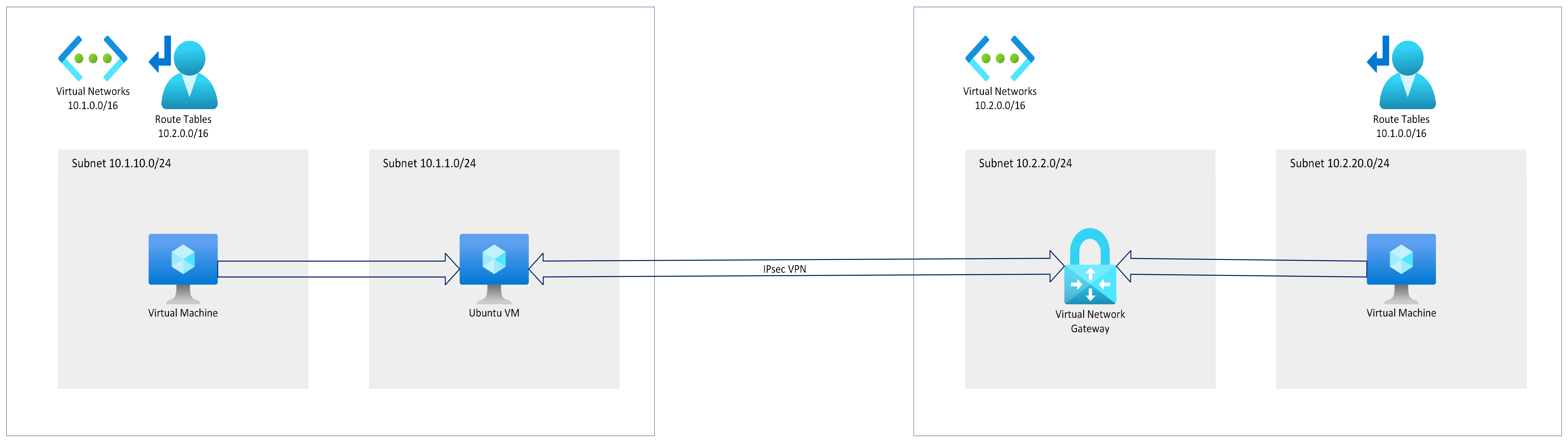

Network Architecture

Before we configure IPsec VPN using strongSwan, we need to deploy Azure VMs with Public IPs which are in different VNets and there is no connecitivity between VNets in any manner. You could perform this excerise in AWS as well by creating two EC2 instances in different VPCs.

network-diagram

Enable IP forwarding

Before configuring IPsec VPN, we must make sure that our VMs act as routers.

Router can accept and forward packets which are not destined to itself. This behaviour of router is called IP forwarding. However, servers/VMs would discard the packets which have destination IP differnt from the its own.

This is default behaviour for servers/VMs and we can change it. We can configure the OS of the server/VM to accept the packets which have destination IP differnt from the its own interface IP. This configuration differs depending on the OS.

In Ubuntu distros, you could enable IP forwarding by modifying the contents of /etc/sysctl.conf. One of the easy way to do it is by using sed command as below.

sudo sed -i 's/#net.ipv4.ip_forward=1/net.ipv4.ip_forward=1/g' /etc/sysctl.conf
sudo sed -i 's/#net.ipv6.conf.all.forwarding=1/net.ipv6.conf.all.forwarding=1/g' /etc/sysctl.conf
sudo sysctl -p

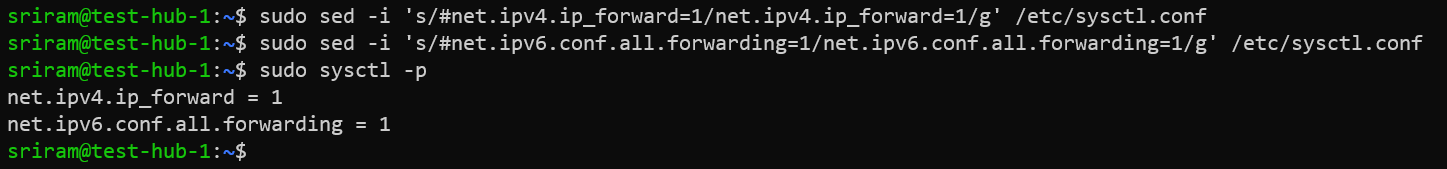

Example:

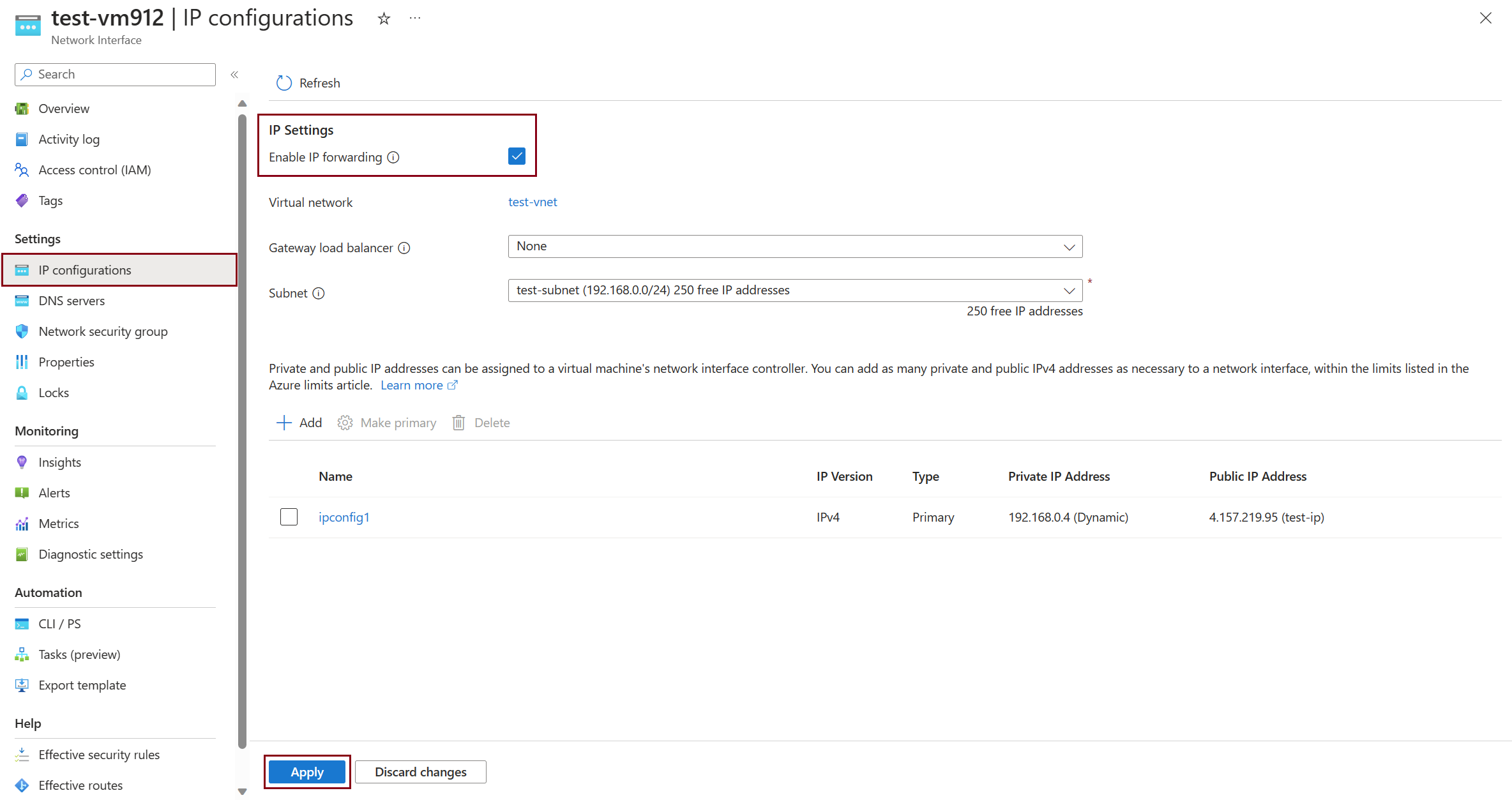

Since we deployed Azure VMs, we must also enable IP forwarding in the vNIC of the Azure VMs.

Please note that enabling IP forwarding in the vNIC of the Azure VM is an additional step as it does not enable IP forwarding in the guest OS so we still need to enable IP forwarding in Ubuntu OS.

Configuring strongSwan

With our network infrastructure ready and IP forwarding enabled in the OS and in VNIC, we could proceed with the configuration of IPsec VPN.

Install strongSwan.

sudo apt-get update
sudo apt-get install strongswan -y
sudo apt-get install strongswan-pki -y
sudo apt-get install libstrongswan-extra-plugins -y

Example:

Configure IPsec VPN by editing the ipsec.conf file.

sudo vi /etc/ipsec.conf

Contents of the ipsec.conf file.

config setup
        charondebug="all"
        uniqueids=yes
conn tunnel21
        type=tunnel
        left=<Private_IP_address_of_the_VM>
        leftsubnet=<Local_IP_prefix>
        right=<VPN_peer_IP_address>
        rightsubnet=<Remote_IP_prefix>
        keyexchange=ikev2
        keyingtries=%forever
        authby=psk
        ike=aes256-sha256-modp1024!
        esp=aes256-sha256!
        keyingtries=%forever
        auto=start
        dpdaction=restart
        dpddelay=45s
        dpdtimeout=45s
        ikelifetime=28800s
        lifetime=27000s
        lifebytes=102400000

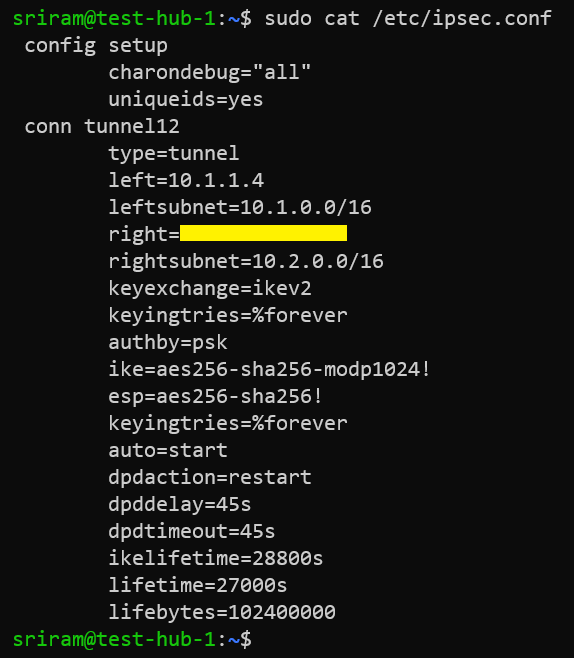

Example:

Configure pre-shared key for VPN in ipsec.secrets file.
```
sudo vi /etc/ipsec.secrets
```
Contents of the ipsec.secrets file.
```
<Private_IP_address_of_the_VM> <VPN_peer_IP_address> : PSK "<pre-shared_key>"
```
Please make sure that the same pre-shared key is configured on both IPsec peers. Otherwise, VPN will be down.

Example:

Restart the strongSwan process.

sudo systemctl restart ipsec
sudo systemctl status ipsec

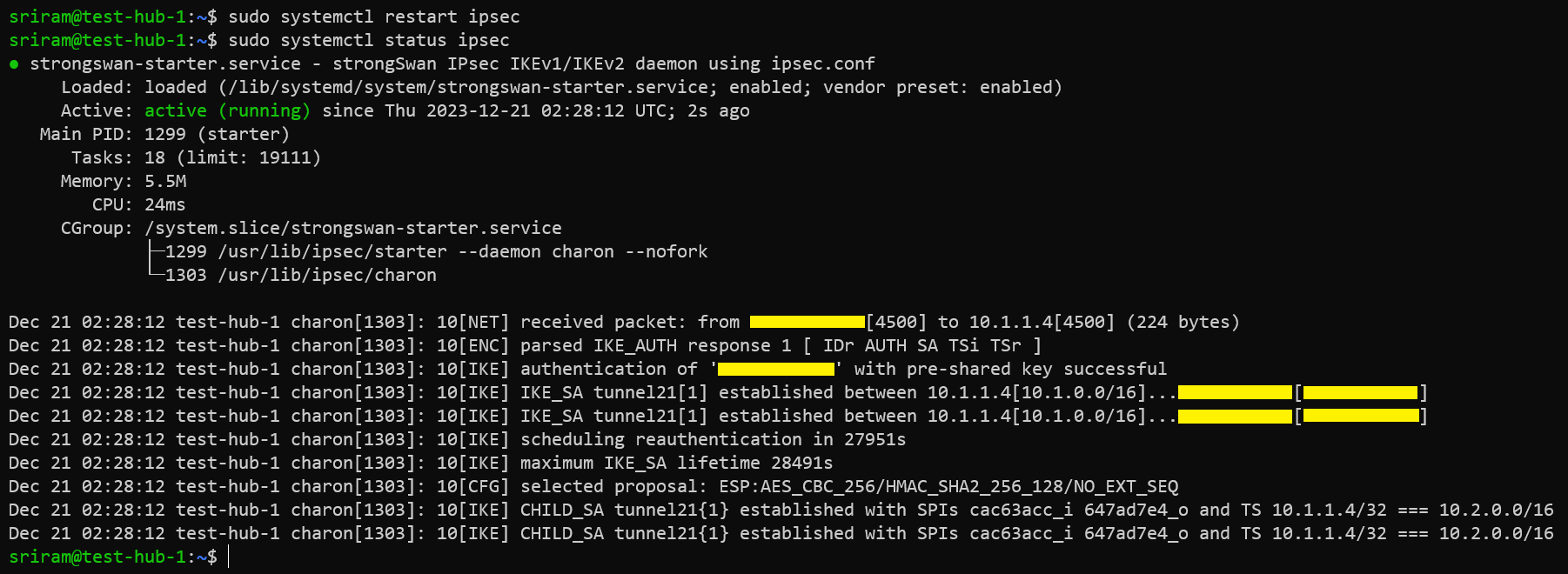

Example:

Verification of IPsec

You could verify if the IPsec is established by executing the command sudo ipsec status.

You could perform stop and start operations using command sudo ipsec stop and started using sudo ipsec start commands. Please refer to the man page of ipsec command.

In case the IPsec doess not establish, you could troubleshoot with the help of IPsec logs by using the command below.

sudo cat /var/log/syslog | grep "ipsec"
